PAA LION

Non rust, for domestic roofing and farm application

GENERAL INFORMATION:

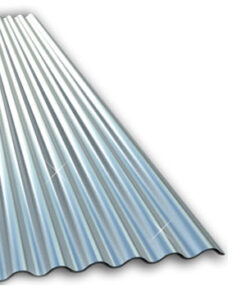

PAA LION is a sinusoidal corrugated profile with 11 corrugations. The sheet is embossed to give it additional rigidity with an appealing look. This design is possible only in Aluminium, due to the intricacy of the process. The trough is 18.0 mm and is very convenient where the span of the roof is small. The embossed look retains the brightness without glare in the sunshine.

This Profile conforms to KS : 2026,2011.

Non rust with a wider span, for domestic roofing and farm application

GENERAL INFORMATION:

PAA EXTRA is a sinusoidal corrugated profile with 14 or 16 corrugations. The maximum cover width available with this product is (PAA Extra 14) 1,000mm / (PAA Extra 16) 1,152mm as against 762mm which is available in the market. This has obvious advantages in reduction of the overlaps and hence joints and fasteners. The embossed surface improves the rigidity of the sheet and also reduces glare.

APPLICATIONS:

Residential, Side Cladding, Poultry Farm Roofing, E.t.c.

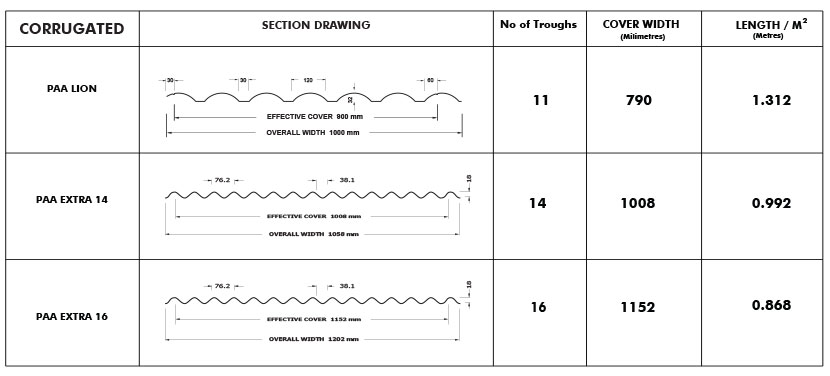

CROSS SECTION

TECHNICAL SPECIFICATION

  • 0.35mm to 1.4mm tolerance 10%
  • Between 2.0m in steps of 0.3m to 0.5m and 3.5m and maximum of 12m for thickness higher than 0.5mman
  • Tile Red, Sky Blue, Bright Blue, Dark Green, Brick Red, Light Cream and Kraft Grey.
  • Natural Aluminium – Other colours available on request (minimum 300m)
  • PAA Lion: 842.5mm
  • PAA Extra 14: 1058mm
  • PAA Extra 16: 1202mm
  • PAA Lion: 0.790m
  • PAA Extra 14: 1.008m
  • PAA Extra 16: 1.152m
To calculate no: of sheets (N)
N= W % Cover width Pieces (Where N=Sheets in pieces & W= linear length of the roof in meters)
